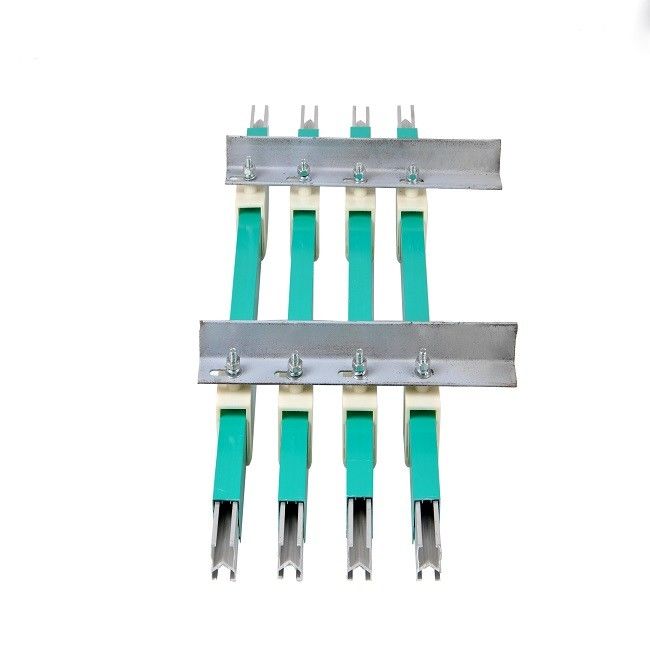

Crane Conductor Rail Equipment Safety Power Supply Conductor Bar

Bus bar systems can be designed in different configurations based on the specific application requirements:

• Straight Run Configuration: In this configuration, the bus bars run in a straight line, typically mounted on insulating supports or bus bar trays. Straight runs are commonly used in applications where power distribution follows a linear path, such as along walls or in equipment racks.

• Elbow Configuration: Elbow configurations involve bending the bus bars to navigate around corners or obstacles. Elbows can be created by using pre-fabricated bends or by employing bending techniques to shape the bus bars to the desired angles. Elbow configurations allow for flexibility in routing the bus bars within a confined space.

• T-Junction and Cross-Junction Configurations: T-junction and cross-junction configurations are used to distribute power to multiple branch circuits or equipment. T-junctions allow the bus bars to split into two or more directions, while cross-junctions provide a cross-shaped branching of the bus bars.

• Plug-In Configuration: Plug-in bus bar systems feature tap-off units that can be plugged directly into the main bus bars. This configuration allows for easy installation, reconfiguration, and expansion of the power distribution system without the need for additional wiring.
