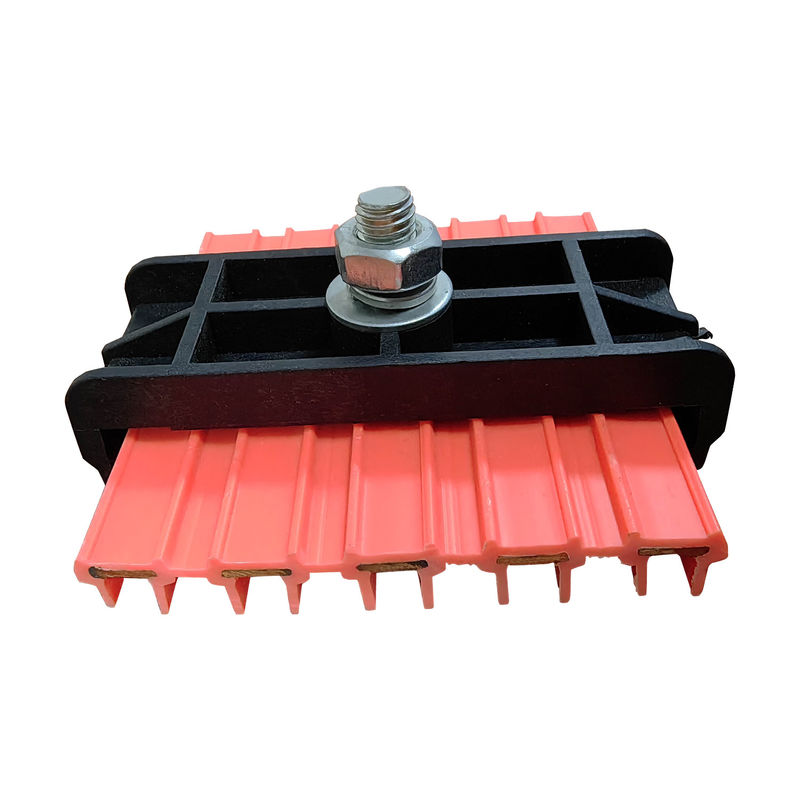

Seamless Crane Conductor Rail Power 50-140a Jointless Safety Sliding Wire

Bus bars are designed and rated based on various parameters:

• Current Carrying Capacity: The current carrying capacity of a bus bar is determined by factors such as its cross-sectional area, material properties, and temperature rise limitations. It is crucial to select a bus bar that can handle the expected electrical loads without exceeding its thermal limits.

• Voltage Rating: Bus bars are rated for their voltage capability, which determines the maximum voltage they can safely withstand without insulation breakdown or arcing.

• Temperature Rise: Bus bars generate heat due to the electrical resistance of the material and the current passing through them. Temperature rise limits are specified to ensure the bus bars operate within safe temperature ranges and avoid performance degradation or damage.

• Short Circuit Withstand Capacity: Bus bars should be designed to withstand short circuit currents without structural failure or excessive temperature rise. The short circuit withstand capacity depends on factors such as the material strength, bus bar dimensions, and fault current magnitude.

• Insulation Class: Insulation plays a vital role in bus bar systems, especially in high-voltage applications. Different insulation classes, such as Class B, Class F, or Class H, indicate the maximum allowable operating temperature of the insulation material.

• Standards and Compliance: Bus bars are designed and manufactured in accordance with industry standards and regulations to ensure safety, reliability, and compatibility with other electrical components.

 It is important to carefully consider the ratings and specifications of bus bars to ensure they meet the specific requirements of the intended application.
